FILTERS

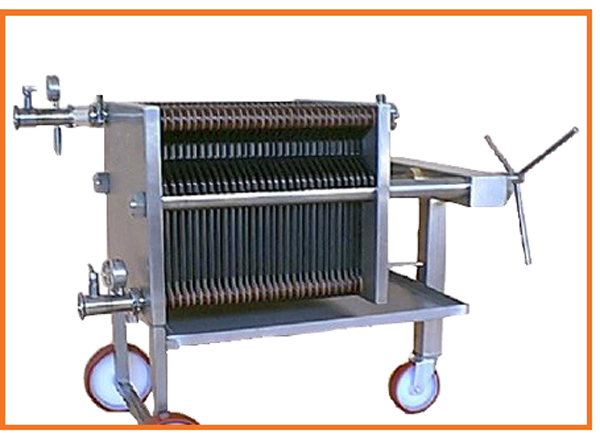

PLATE & FRAME FILTERS

These 40×40 plate filters are used in the wine, beer, food, chemical and pharmaceutical fields. It can be used as a straight plate filter with cellulose sheets, or a double filtration kit to filter two grades. Available in various sizes: 20 plate filter with 12 or 20 plates; 40 plate filter with 30 or 40 plates; 60 plate filter with 60 plates; or 80 plate filter with 80 plates and above

brewery

CHARACTERISTICS:

  • Unit mounted on wheels.
  • Valves and fittings in stainless steel.
  • Head plate and mobile plate clad in stainless steel.
  • Filter closure by means of a heavy duty threaded rod.
  • Pressure gauges.
  • Steam sterilizable.
  • Double inlet, double outlet.
  • Sanitary fittings

OPTIONS:

  • Diversion chamber for double filtration
  • Centrifugal pump on trolley or mounted on the filter’s frame
  • Manual hydraulic closure
  • Plates in stainless steel
  • Extension for 20 plates
  • Noryl plates with silicone gaskets (end and mid plates)
  • Stainless steel blind plates

ABW PRODEB HDF filters are designed for ease of use and simplicity. All HDFs are designed to be highly sanitary and easy to clean. HDF filters are composed of a filtering chamber and complementary components, which work together for operations such as pre-coating, filtration with continuous addition of regulated quantities of diatomaceous earth, cake discharge by manual tipping and removal of the bell housing and lastly, the final rinsing of the filtering elements.

microbrewery filters

CHARACTERISTICS:

  • Compact unit mounted on four wheels
  • Filtration pressures up to 6 BAR
  • 316 stainless steel screens.
  • Domed bottom
  • Scavenger Filter to maximize filtration efficiency
  • The tilting system of all filtering elements assures easy and fast cleaning time with minimum water consumption
  • High-capacity dosing tank with agitator
  • Dosing tank and feeding pump can work independently.
  • Dosing pump with adjustable D.E. dosing capability
  • Pressure safety valve and automatic pressure safety switch
  • Butterfly valves, lighted sight-glasses at inlet and outlet of liquid, output indicators and connecting piping with tri clamp fittings
  • Available in 3-4-5-6-7 square meter

OPTIONS:

  • Stainless steel spacers
  • Stainless steel centrifugal pump
  • Stainless steel dosing pump.
  • Turbidimeter

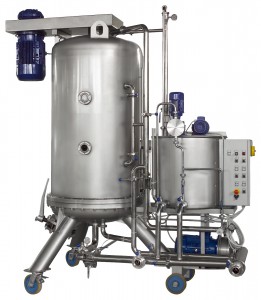

ABW PRODEB filters are for ease of use and simplicity. All CEN filters are designed to be highly sanitary and easy to clean. CEN filters are composed of a filtering chamber and complementary components, which work together for operations such as pre-coating, filtration with continuous addition of regulated quantities of diatomaceous earth, cake discharge by automatic rotational centrifugal force from the plate-pack and lastly, final rinsing of the filtering elements. CEN filters have the added benefit of automatically discharging the spent D.E., thus saving time and energy.

brewery equipment

CHARACTERISTICS:

  • Filtration pressures up to 6 BAR.
  • 316 stainless steel screens mechanically resistant
  • Domed bottom with large cake discharge opening
  • Scavenger Filter to maximize filtration efficiency
  • Heavy-duty plate pack rotation device, which removes exhausted cake
  • Final washing of the filtering elements accomplished via water jets
  • Washing turbidimeter does not require opening filter
  • High-capacity dosing tank with agitator
  • Dosing tank and feeding pump can work independently
  • Dosing pump with adjustable D.E. dosing capability
  • Pressure safety valve and automatic pressure safety switch
  • Butterfly valves, lighted sight-glasses at inlet and outlet of liquid, output indicators and connecting piping with tri-clamp fittings

OPTIONS:

  • Dosing of D.E. by means of piston pump with housing in stainless steel (for larger models)
  • Stainless steel spacers
  • Sanitary Stainless Steel Pump
  • Turbid meter

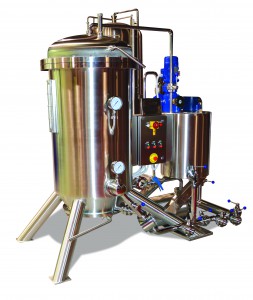

ABW PRODEB now offers vertical screen D.E. Filters. This technology basically doubles your filtration surface. Unlike horizontal screens, which can only filter on the top screen, vertical screens have the added benefit of being able to filter on both sides of the screen, maximizing the filtering surface in a smaller filter housing. Similar to our CEN D.E. Filters the cake formation/cleaning operations include pre-coating, filtration with continuous addition of a regulated quantity of diatomaceous earth, cake discharge by vibration from the filtering elements and lastly, the final rinsing of the filtering elements with integrated rinsing nozzles. ABW PRODEB offers extensive brewing filter options for all your brewery needs

filters

CHARACTERISTICS:

  • Filtration pressures up to 9 BAR.
  • 316 stainless steel screens mechanically resistant
  • Truncated bottom with large cake discharge opening
  • Scavenger Filter to maximize filtration efficiency
  • Heavy-duty plate pack rotation device, which removes exhausted cake
  • Final washing of the filtering elements accomplished via water jets
  • Washing turbidimeter does not require opening filter
  • High-capacity dosing tank with agitator
  • Dosing tank and feeding pump can work independently
  • Dosing pump with adjustable D.E. dosing capability
  • Pressure safety valve and automatic pressure safety switch
  • Butterfly valves, lighted sight-glasses at inlet and outlet of liquid, output indicators and connecting piping with tri-clamp fittings

OPTIONS:

  • Dosing of D.E. by means of piston pump with housing in stainless steel (for larger models)
  • Stainless steel spacers
  • Sanitary Stainless Steel Pump
  • Turbid meter
  • Turbid meter

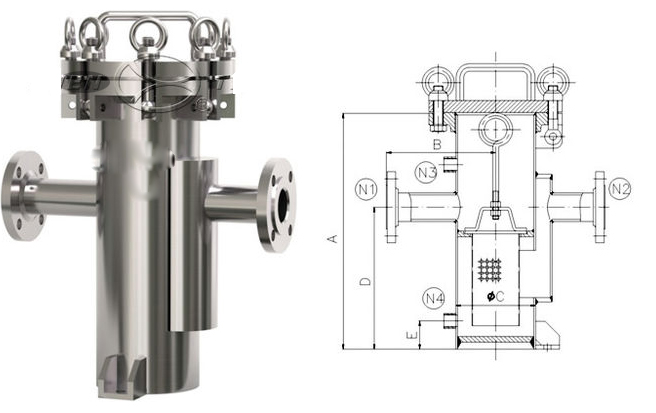

Stainless Steel Basket Strainer SS304 / SS316L Basket Filter Housing Stainless Steel SS304 / SS316L Basket Filter Housing , Strainer

micro brewery equipment

prodeb Basket Filter is a larger pipe filter . The mesh filtration area is 2~3 times than pipe diameter area. It is suitable for the material with the highest content of impurities and the large amount of circulation .its stable for wort filtration prior to PHE WORT FILTRATION ENSURES ALL PARTICLES FROM LIQUID ARE REMOVED MALT GRAINS AND PROTIENE
