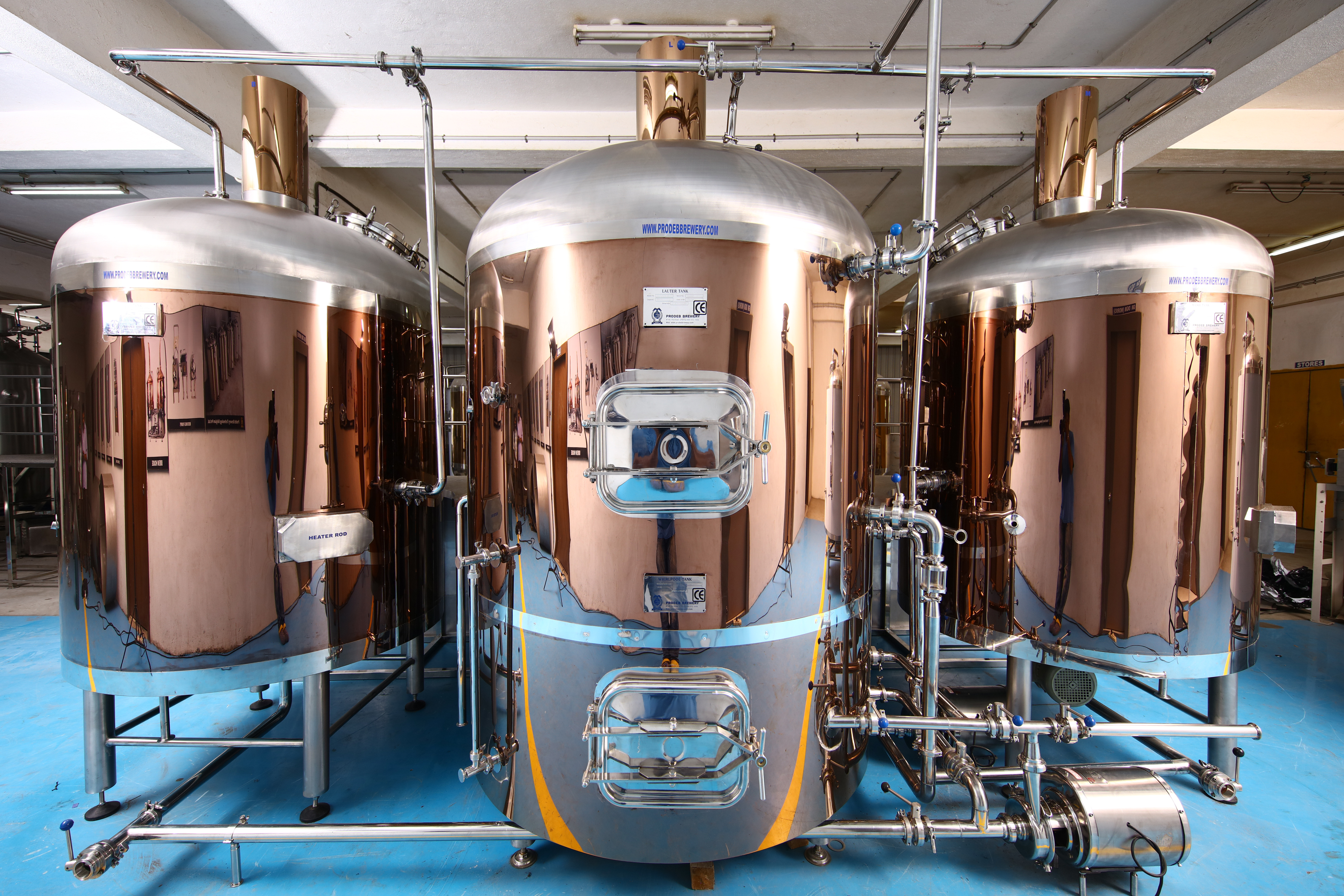

BREW HOUSE - OPTIMIZED EFFICIENCY WITH STUNNING LOOKS

The most important and backbone of your brewery. ABW Prodeb brew house is the most advanced standardized brew house in stainless steel integrating all processes of brewing from GRIST hydration, Pre mashing, mashing, lautering, boiling and whirlpool into a single system. ABW Prodeb focus on high technology ensures minimum footprint with maximized efficiency and hygiene coupled with lowest cost of capital investment as well as operation and maintenance. Brew more beer with prodeb revolutionary brew house technology as it takes lesser time to complete your brewing cycle with ease. The ABW Prodeb Brew House is a brew Masters delight as it supports all his actions effortlessly to produce the best beers.

brew house

Advantages of ABW Prodeb:

  • Grist hydration on top of mashing tank.
  • Variable speed control in mash and lauter rake.
  • Multi step Mashing process control with PLC.
  • High quality certified SS304.
  • High quality internal and external welding and polishing.
  • Highest extraction of the malted grain.
  • Larger Lautering area.
  • Multi collection pot under false bottom of lauter.
  • Specialized Sparging nozzle.
  • Greater separation of unwanted proteins to forms a perfect trub in the whirlpool.

brewery equipment

ABW Prodeb Brewery Technology, Belgium knowledge of traditional beer making with cutting edge technology. This gives the client a high performance brewing system.

Sell more beer with ABW Prodeb:

  • Over 60 Brew Houses in less than 5 years..
  • One stop solution from planning to beer production..
  • High quality craftsmanship along with State of Art technology.
  • Produce infinite varieties and styles of beer including classic and contemporary styles..
  • CE certified
  • ISO 9001 certified..

brewhouse

This popular option is for clients looking to have all of the features of our larger brewhouses, but in a much smaller size. This system for example could allow some of our larger clients to run test batches on a smaller scale, while matching the build and layout of their larger counterpart to allow for accurate comparison.

brew house equipment

PARTIAL LIST OF TECHNICAL CHARACTERISTICS:

  • All our pilot systems come with complete tig welded tanks and piping
  • Constructed of 304 or 316 stainless steel
  • All piping is TRC fitted, including every elbow, tee and curve in the system; allows for a 100% sanitary system
  • All pumps in the brewhouse include 100% stainless steel pump AND motor
  • MLT open top with optional closed top
  • Rake System both non-lifting and hydraulic lifting optional
  • HLT tank included in all pilot systems

OPTIONS:

  • Automation systems
  • Complete Grain Mill Systems available
  • Various Stainless Steel Finishes
  • Polished
  • Brushed
  • Satin Finish
  • Copper Clad and/or Copper accented Copper /Gold titanium
  • Black matt titanium etc

At ABW PRODEB, our brewing systems are all built turnkey and offer several advantages that outshine those of our competitors. All vessels have an impeccable heating and cooling system through our jacket design. With a high percentage of dimples and an internal spacing of 7 mm, our jackets have 130% more heating and cooling potential than tanks with the usual 3 mm gap seen in inflated jackets. All rakes in our brewhouses include an automatic outplow paddle design. This allows the brewer to plow out spent grain just by reversing the direction of the rake. Our water jet cut screens also represent our dedication to detail. ABW PRODEB uses water jet cut screens as the standard for all of our false bottom screens to improve drainage, increase efficiency and promote consistently clear wort. Sanitation is always top priority when producing your brews. ABW PRODEB is proud to be one of the few North American companies that have a standard of making sure that every corner, tee, manifold etc. is fitted with TRC connections and clamped NOT welded. This allows our clients to inspect their system at every angle. On the areas that need to be welded, we make sure to grind smooth, polish and passivate every TIG weld. Even the largest possible stainless steel sheets are joined and butt-welded to create a stronger tank. To further ensure sanitation and quality, everything that comes in contact with your product, from the handles to the motor is 100% stainless steel and is made to be fully dismantled and easy to clean. While ABW PRODEB makes sanitation and quality a priority, we want to go even further in proving our dedication by ensuring visual satisfaction. We also offer various special features from linear piping systems to customized nameplates to make sure that every vessel represents the same attention to detail that our clients show through their product.In our Standard 3 HL and 10 HL brewhouses are built turnkey systems that offer the quality you need to produce your best brew. They also use the same technology as our large-scale systems to ensure durability in any production

CHARACTERISTICS:

  • All our 3 TO 10 Hl systems come with complete tig welded tanks and piping.
  • Constructed of 304,304L Stainless Steel.
  • All piping is TRC fitted, including every elbow, tee and curve in the system; allows for a 100% sanitary system.
  • All pumps in the brewhouse include 100% stainless steel pump AND motor
  • MLT open top with optional closed top
  • Rake System – both non-lifting and hydraulic lifting optional

OPTIONS:

  • Automation systems
  • Complete Grain Mill Systems available
  • Various Stainless Steel Finishes
  • Polished
  • Brushed
  • Satin Finish
  • Copper Clad and/or Copper accented Copper /Gold titanium
  • Black matt titanium etc
